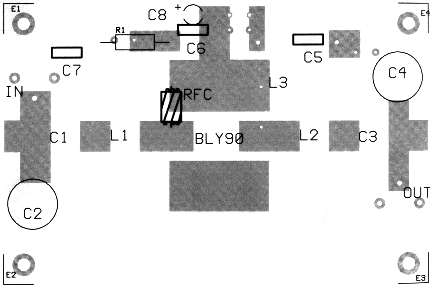

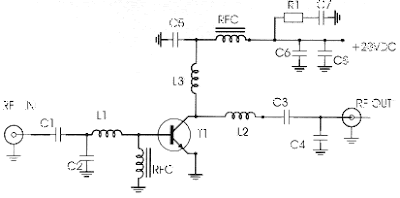

C1, C2, C3, C4 = 10 – 80pF
C 5 = 10nF
C6 = 1000pF
C7 = 100nF
C8 = 2200mF/35V
L1 = 1 coil with diameter of 10 mms, 1 mm
L2 = 7 coils with diameter of 10 mms, 0,8 mm
L3 = 3 coils with diameter of 10 mms, 1 mm
TR1 = BLY89
RFC = RF tsok
